Trackball
Newdesy K-TEK-38-MTB-AVR-NV-151B

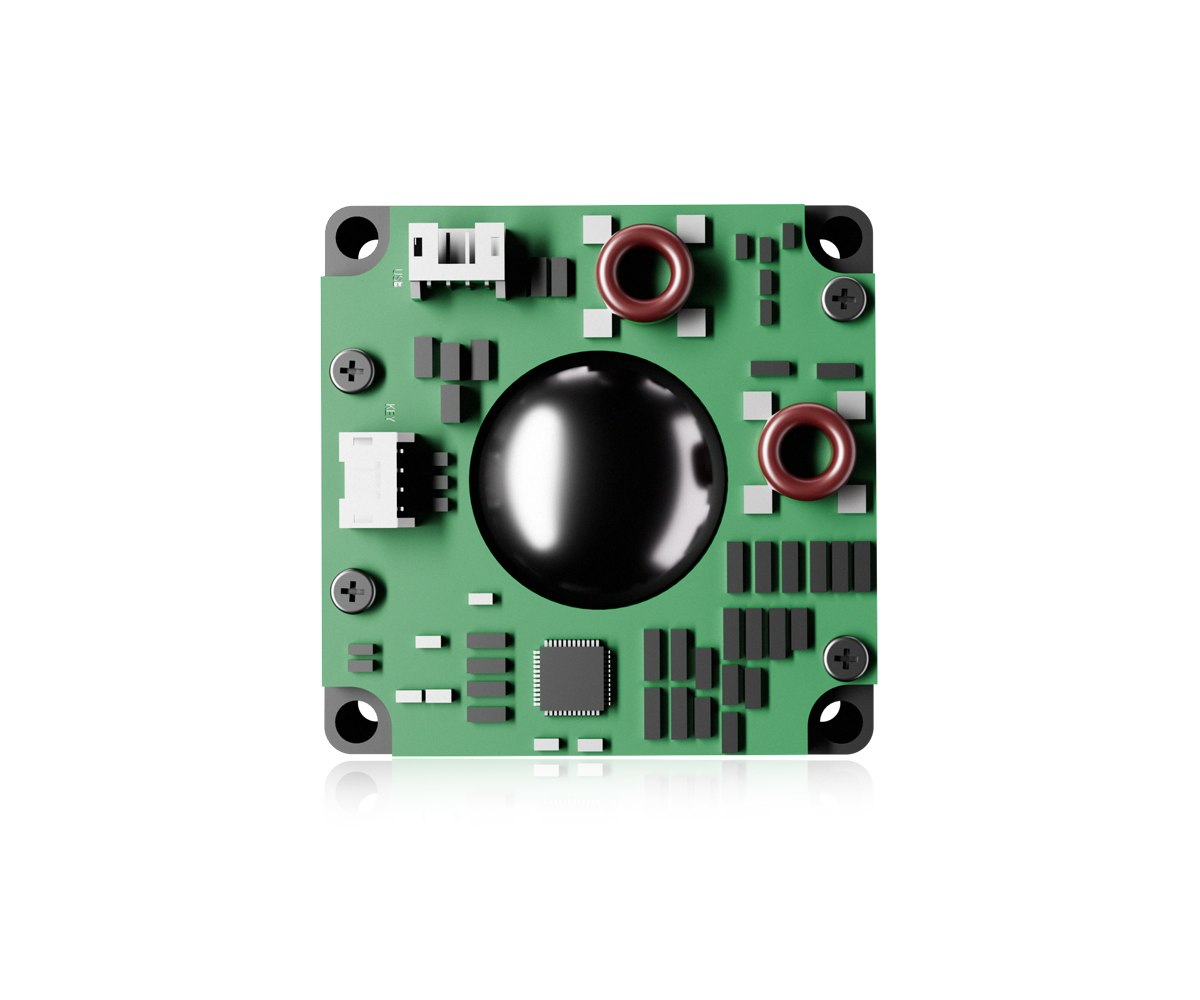

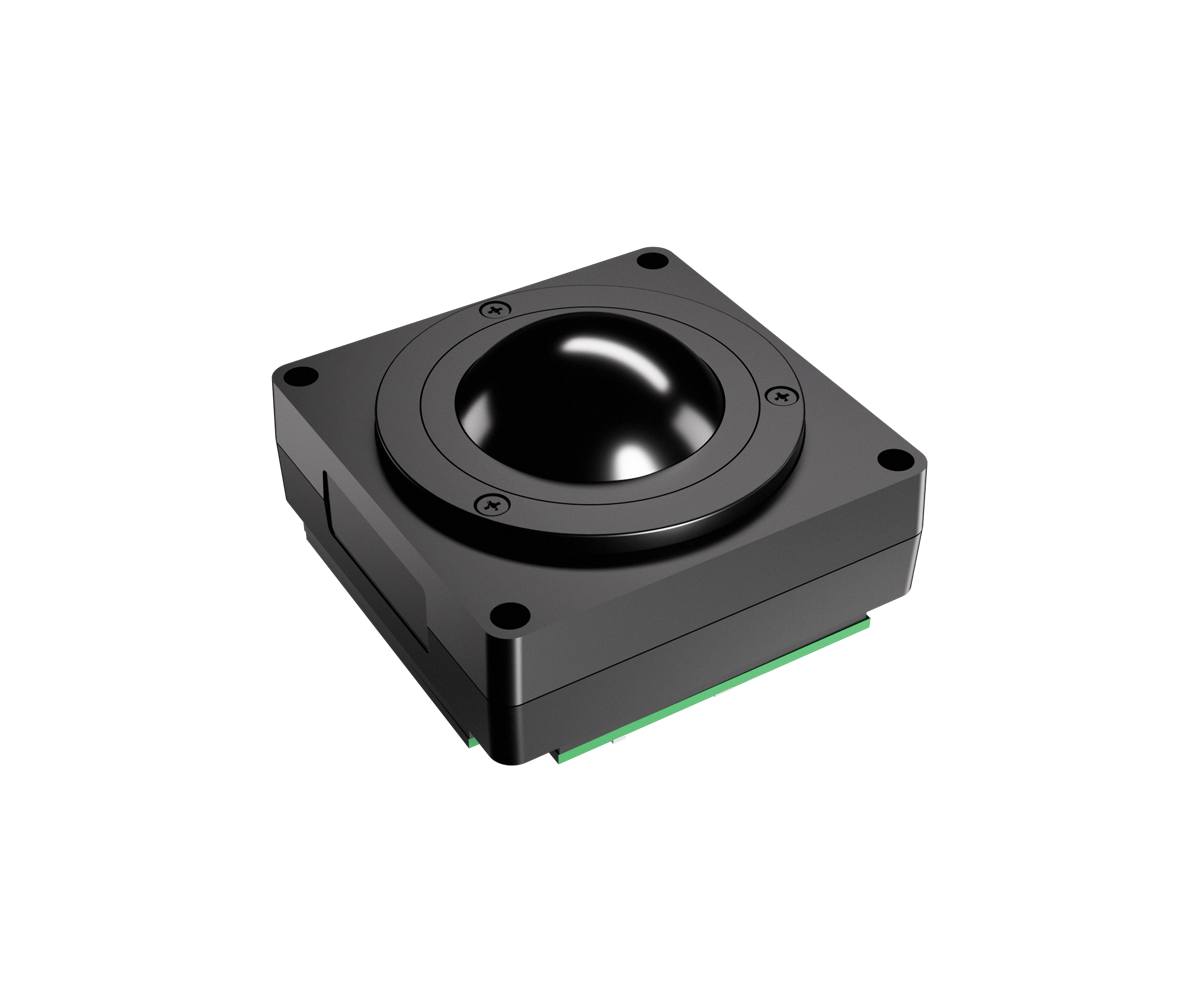

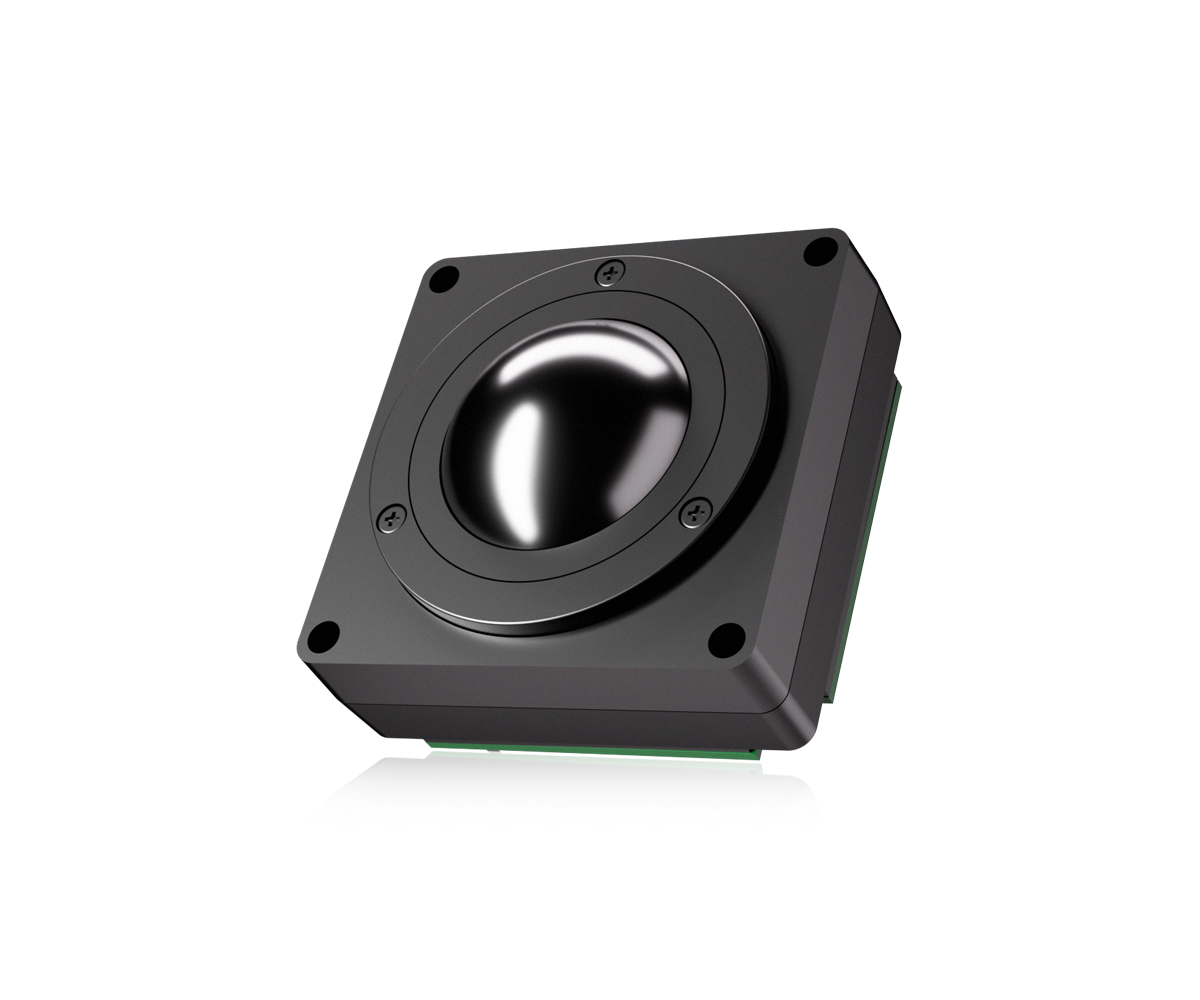

IP65 static rated rugged anti-vibration 38.0mm black resin mechanical trackball module with 400DPI resolutions for fast and accurate cursor position with smooth operation without any noise, stainless steel ball module available, which can be removable for easy cleaning , w ith two external left and right mouse buttons optional, panel mounted solution.
- Original model
- K-TEK-38-MTB-AVR-NV-151B
- Protection
- IP65 static
- Interface
- USB
- Mounting
- Panel mount
- MOQ
- From 1 unit
- Customization
- Layout, language, interface, backlight, branding and mounting
Engineering data
Technical Specifications
General & Mechanical
| Category | Trackball |
|---|---|
| Mounting Solution | Panel mount |
| Ball Diameter | 38.0mm |
| Application | Vehicle, aerospace, naval, maritime, Radar, console, portable rugged laptop, UAV ground station etc. |
Electrical & Interface
| Interface | USB |
|---|
Environmental & Reliability
| Protection Level | IP65 static |
|---|---|
| Operating Temperature | -40ºC to +60ºC |
Engineering note
Configured Around Your Application
Final specifications are confirmed during engineering review. Share the installation space, required layout, interface, operating environment and expected quantity so our team can recommend the appropriate standard platform or customization route.
Typical lead time
For standard products and simple customization, such as logo changes, orders under 200 units typically require 7–30 days and larger orders typically require 30–60 days. Highly customized projects require an engineering assessment and may take approximately 3–6 months, depending on development, prototyping, testing and approval requirements.
