Trackball
Newdesy K-TEK-19-OTB-AVR

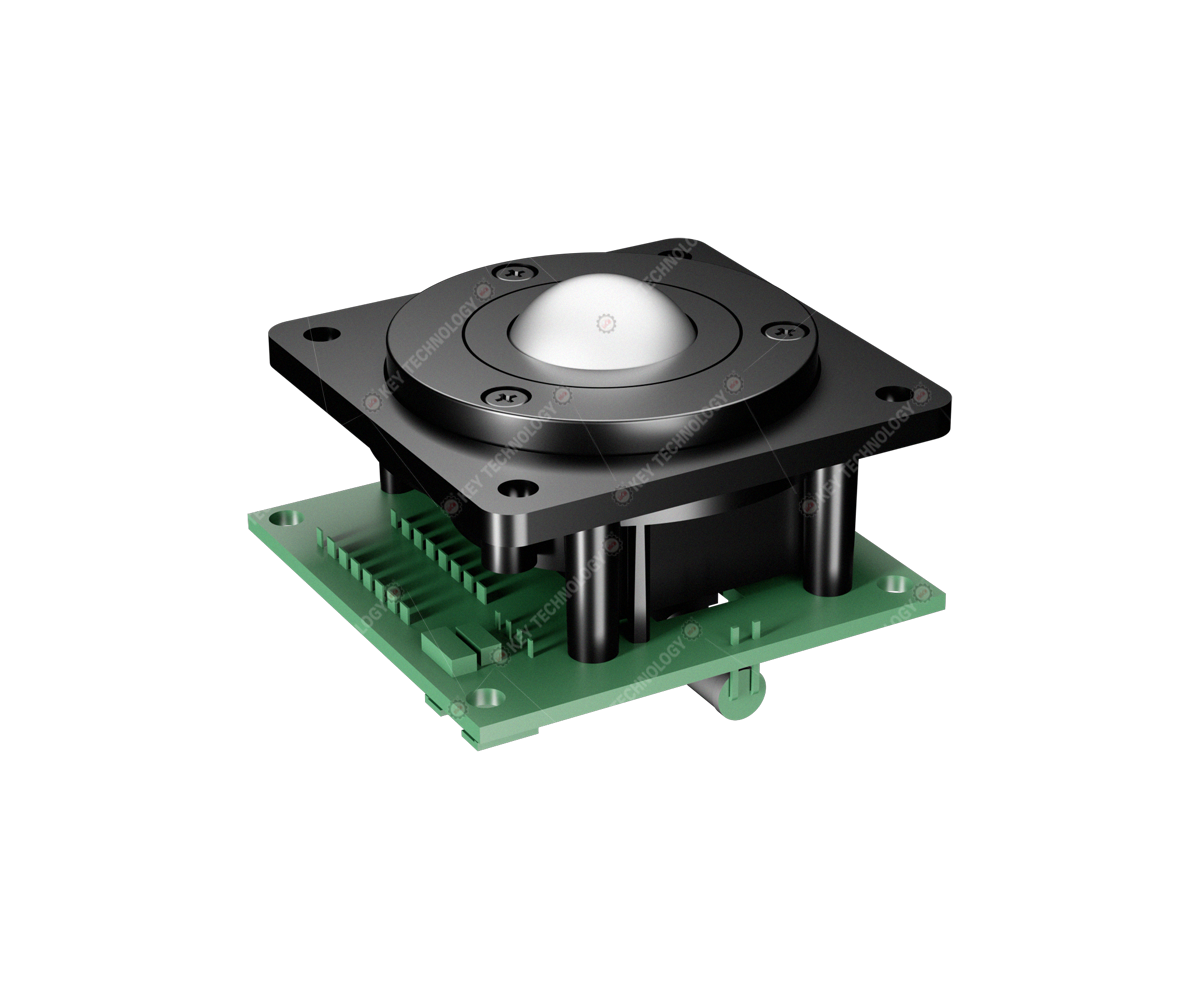

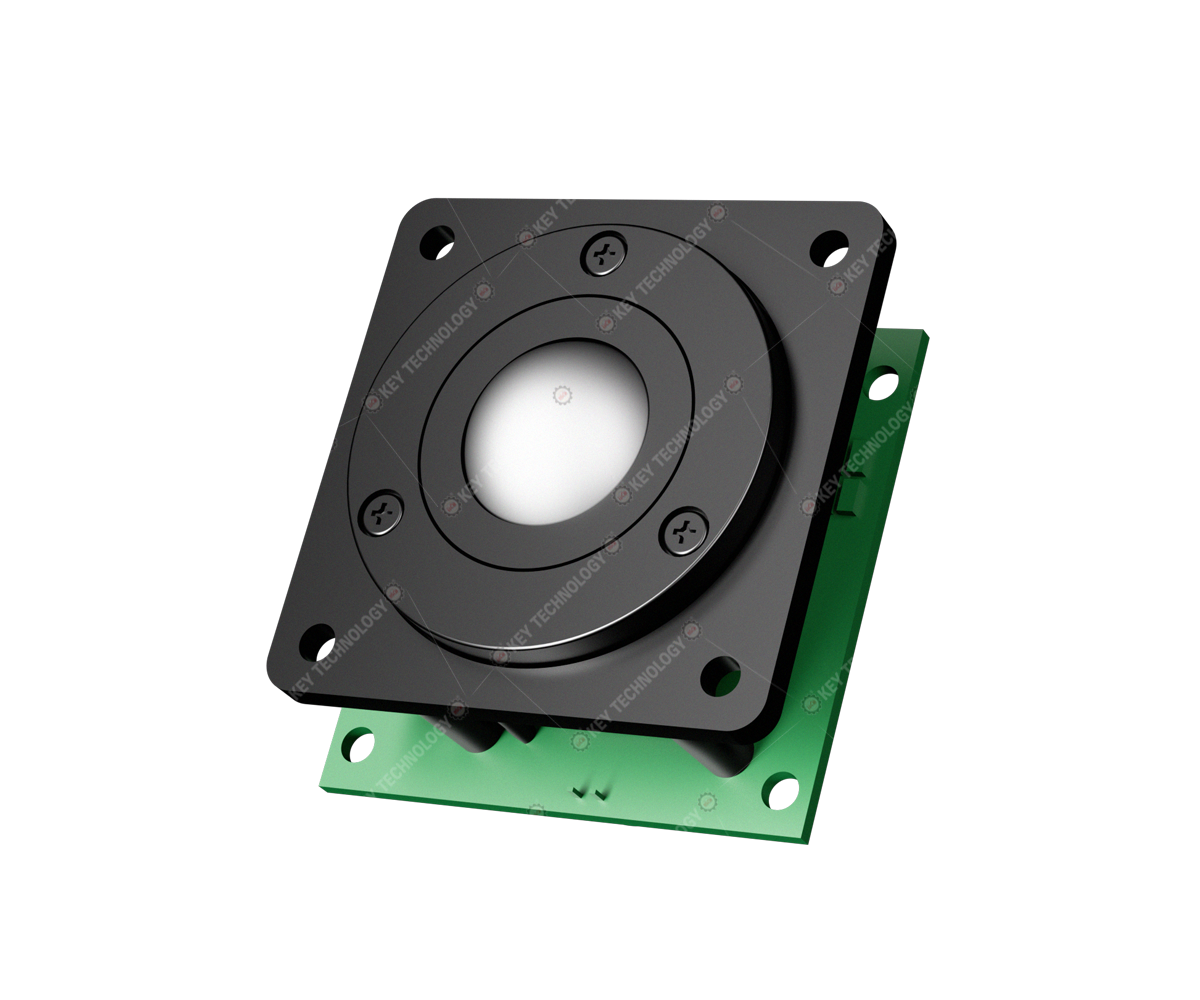

19 .0mm IP 65 dynamic waterproof washable rugged anti-vibratio n silver resin optical trackbal l module with 8 00 DPI resolutions for fast and accurate cursor movement , which can be removable for easy cleaning , with durable coating & antimicrobial surface and can be used in harsh environments to well withstand bacteria , USB interface, with 2 external left
- Original model
- K-TEK-19-OTB-AVR
- Protection
- IP65
- Interface
- USB/PS2 optional
- Mounting
- Panel mount
- MOQ
- From 1 unit
- Customization
- Layout, language, interface, backlight, branding and mounting
Engineering data
Technical Specifications
General & Mechanical
| Category | Trackball |
|---|---|
| Mounting Solution | Panel mount |
| Ball Diameter | 19.0mm |
| Application | Vehicle, aerospace, naval, maritime, Radar, display console, portable rugged laptop, UAV ground station etc. |
Electrical & Interface
| Interface | USB/PS2 optional |
|---|
Environmental & Reliability
| Protection Level | IP65 |
|---|---|
| Operating Temperature | -40ºC to +60ºC |
Engineering note
Configured Around Your Application
Final specifications are confirmed during engineering review. Share the installation space, required layout, interface, operating environment and expected quantity so our team can recommend the appropriate standard platform or customization route.
Typical lead time
For standard products and simple customization, such as logo changes, orders under 200 units typically require 7–30 days and larger orders typically require 30–60 days. Highly customized projects require an engineering assessment and may take approximately 3–6 months, depending on development, prototyping, testing and approval requirements.
